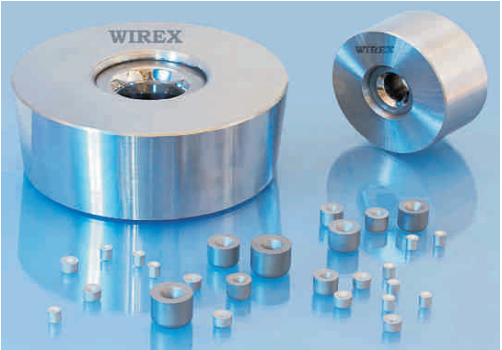

Tungsten carbide dies are a wise economical choice for steel wire and other large-size wire drawing applications that make cost savings a priority over die wear resistance and wire surface finish. Wirex manufactures its tungsten carbide dies with expert technology and precision craftsmanship that promise the kind of reliable performance you expect. Wirex manufactures TC dies from 0.2 mm upto 60 mm
Advantages:
I. Excellent corrosive wear resistance.
2. Available in a large range of sizes.
3. Very cost-effective production.
Usage:
MS wire, High carbon, stainless steel wires of all sizes and welding wire
TC Wire Drawing Dies
TC Round Bar Drawing Dies

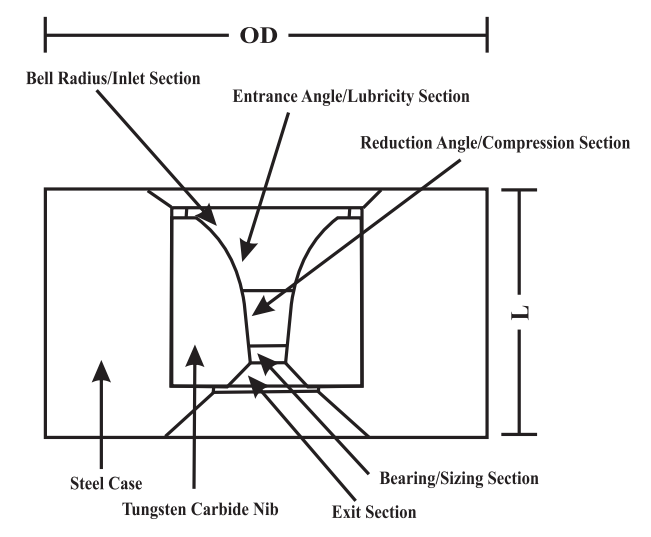

| Range of Bores (mm) | Pellet Size | Case Size |
| 0.23-1.00 | 10 x 08 | 28 x 15 |
| 0.23-1.50 | 13 x 08 | 28 x 15 |
| 0.23-1.00 | 13 x 10 | 28 x 15 |
| 0.70-2.50 | 15 x 13 | 43 x 28 |
| 0.80-4.00 | 17 x 15 | 43 x 28 |
| 1.20-5.00 | 19 x 17 | 43 x 31 |
| 2.00-7.00 | 22 x 18 | 43 x 31 |
| 2.00-7.00 | 22 x 18 | 53 x 34 |
| 4.50-9.50 | 25 x 20 | 53 x 34 |
| 4.50-9.50 | 25 x 20 | 75 x 40 |
| 5.60-12.00 | 30 x 24 | 53 x 34 |
| 5.60-12.00 | 30 x 24 | 75 x 40 |
| Range of Bores (mm) | Pellet Size | Case Size |
| 4-9 | 25 x 20 | 75 x 40 |
| 5-13 | 30 x 24 | 75 x 40 |
| 10-16 | 35 x 24 | 100 x 40 |
| 14-19 | 40 x 24 | 100 x 40 |
| 18-22 | 45 x 24 | 127 x 45 |
| 21-25 | 50 x 25 | 127 x 45 |
| 24-28 | 55 x 27 | 127 x 45 |
| 27-31 | 60 x 27 | 127 x 45 |
| 31-34 | 65 x 27 | 127 x 45 |
| 34-37 | 70 x 30 | 150 x 50 |
| 37-40 | 70 x 30 | 150 x 50 |
| 40-45 | 80 x 30 | 150 x 50 |
| 45-49 | 85 x 33 | 200 x 60 |
| 49-53 | 90 x 33 | 200 x 60 |
| 53-57 | 95 x 33 | 200 x 60 |
| 57-61 | 100 x 35 | 200 x 60 |
| 61-63 | 100 x 35 | 200 x 60 |
| 63-66 | 110 x 38 | 200 x 60 |
| 67-71 | 120 x 38 | 200 x 60 |
| 71-75 | 130 x 40 | 200 x 60 |
