Diamond Paste
Wirex Diamond paste is manufactured to ISO 9001 quality assurance standards and has “Build In” mirror finish, for obtaining
superior micro-finishes on precision, wear parts, high speed tolls, Carbide Dies and other hard surface.
Wirex prepares diamond paste with a specific “Vehicle” to hold, the diamond particles in a permanent and uniform suspension.
Wirex diamond paste spreads immediately, cools and lubricates the working surface, maintains lubrication throughout the
operation without drying.
Available in 5 gram syringes and 100 gram containers in oil and water soluble and universally soluble and universally soluble
base and in different concentration.

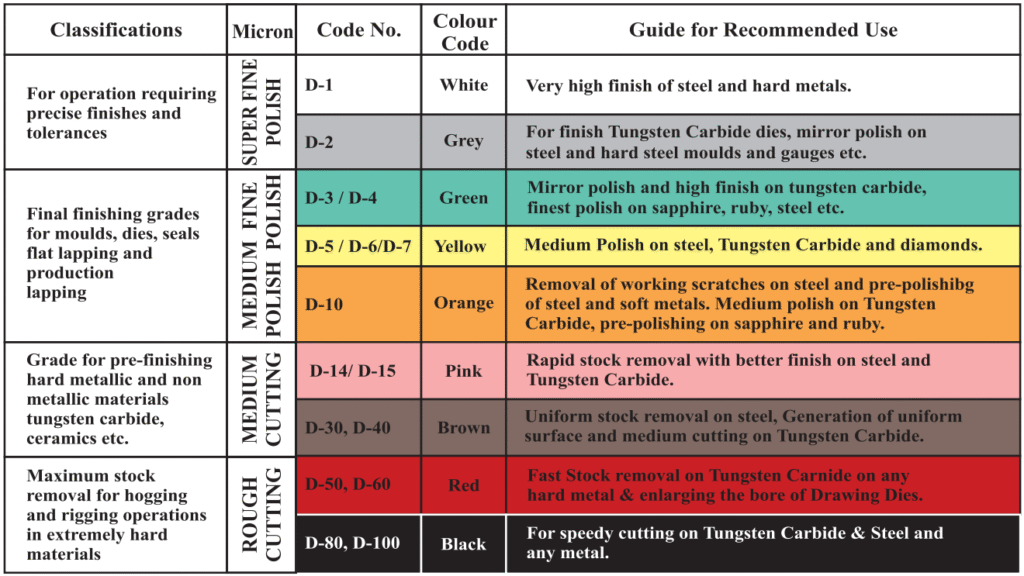

Wirex Diamond Pastes
Applications :
- Aluminium Inserts
- Carbide Wire Drawing Dies
- Ball Bearing Races
- Ceramic & Carbide Seals
- Extrusion Dies
- Punches
- Valves & Seats
- Watch Jewels
- Optical Lenses
- Wear Parts
- Metallographic Specimens
- Plastic Injection Moulds
- Plug, Ring & Thread Gauges
- Precious & Semi – Precious Stones
Important Application Factors :
Material of the lap.
- Grit concentration and chemical composition.
- Size of the powder.
- Working Pressure.
Diamond Powder
Wirex Diamond Powder is used for ripping, polishing and sizing wire drawing dies. Wirex Diamond Powder is readily available
in the standard sizes of : (0-1/4), (2-4), (4-8), (6-12), (12-25), (30-40), (50-60) and (60-80).
WIREX MICRON DIAMOND POWDER
General Selection of Diamond Powder for PCD Dies, Natural Diamond & Carbide Dies
| Micronized Grade Nos. | U.S. Bureau of Standards Micron Range | Mesh Size Equivalent | Application |
| 60-80 | 60 | 270 | for very fast cutting entry & exit angles. |
| 30-40 | 35 | 500 | for fast cutting entry & exit angles |
| 20-30 | 30 | 600 | for medium cutting entry & exit angle |
| 10-20 | 15 | 1,200 | for removing light rings from reduction angles |
| 6-12 | 9 | 1,800 | for re-cutting and re-shaping |
| 4-8 | 6 | 3,000 | for re-cutting |
| 2-4 | 3 | 8,000 | minor removal of wear rings |
| 0-2 | 1 | 14,000 | minor removal of roughness |
| 0-1 | ½ | 60,000 | for medium polishing |
| 0-1/2 | ¼ | 100,000 | for final polishing |
| 0-1/4 | ⅛ | 200,000 | for final mirror polish |

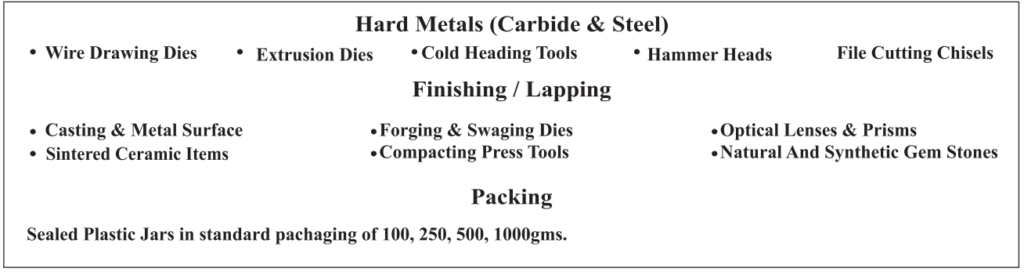

FIELDS OF APPLICATION
Diamond Paste & Slurries
Diamond Paste is available in standard & high concentration in 5 gm syringe packing in oil & water soluble.
Boron Carbide Powder/ Paste (Carbolax)
Wirex Boron Carbide Powder/ Paste is multipurpose abrasive and lapping agent. Carbolax powder/paste is suitable for a large variety of materials ranging from plastics (Eg. Teflon), nonferrous metals and steel to titanium and metallic carbides. Boron Carbide is a super hard abrasive material, next only to diamond and cubic boron nitride in hardness, it simply outclasses the conventional abrasive like aluminium oxide and silicon carbide with its superlative and cost effective performance.
Fields of Application
Owing to its high stock removal rate and the high surface quality obtained only with Carbolax guarantee economical lapping and polishing of precision parts of all types and of all sorts of materials. A surface smoothness below 1.5um can be obtained in two operation even rough surfaces, coarse grinding of the surface being executed, for instance, with grit 250 and finishing with grit 400.
| Quality | Grit Sizes | Quality | Grit Sizes |
| Very Coarse | 80-120 | Fine | 360-400 |
| Coarse | 150-220 | Super Fine | 500-700 |
| Medium | 250-300 | Extra Fine | 800-1200 |
| Medium Fine | 280-350 | Ultra Fine | 1300-1500 |
