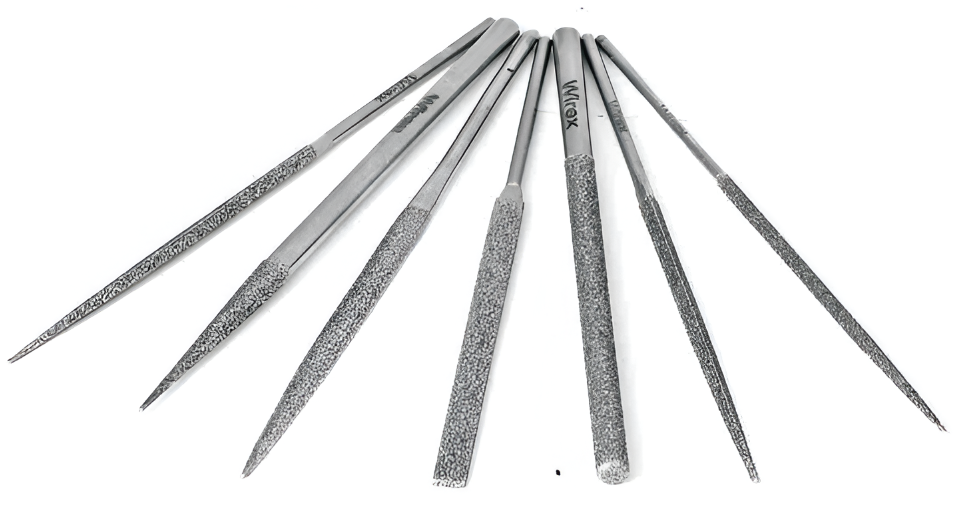

Wirex Electroplated Diamond files are manufactured for specific requirements of the individuals. Our diamond needle files are unique, they have been designed and produced with precision in mind. Different Grit of Diamond like rough, medium and fine are used in manufacturing these files as per individual requirements. These files are used for machining hardened steels and unhardened steels or unhardened high-alloy steels; ferrite, carbon, graphics, FRP, ceramics, hard plastics glass etc.,
Best results are obtained by using these files with light contact pressure. The protusion and uniformly high concentration of the diamond grit on the file surface ensures smooth, free-cutting action and high depth of cut. The file can be cleaned with a soft toothbrush after use.
WIREX recommends to use PCD Dies in Size Range 0.300 mm – 1.800 mm with grain size 1, 3 and 5 micron for Multiwire Drawing Machines. Polycrystalline diamond dies with 25 micron grain size & 50 micron grain size are generally recommended for Intermediate & Rod Break down Machines.
Available In The Following Shapes :
- Round
- Triangular
- Flat
- Square
- Half Round
- Needle Flat (customized)
Applications :
- Sharpening Carbide Cutting Tools
- Sculpturing
- Shapping Precious Stones for jewellry
- Sharpening Household Objects

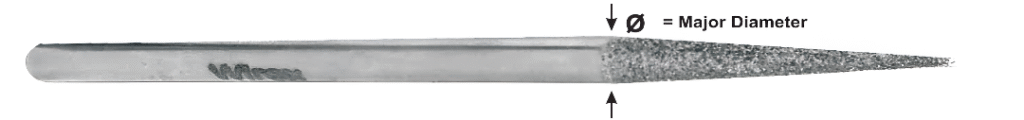

Wirex Conical angle electroplated grinding pins are precisely made from hardened tool steel. These pins are manufactured using the electroplating process to guarantee even particle distribution on the grinding surface for maximum cutting speed and tool life
| DESCRIPTION | MAJOR DIAMETER | INCLUDED ANGLE |
| W3-8 | 3.00 | 8º |
| W3-10 | 3.00 | 10º |
| W3-12 | 3.00 | 12º |
| W3-14 | 3.00 | 14º |
| W3-16 | 3.00 | 16º |
| DESCRIPTION | MAJOR DIAMETER | INCLUDED ANGLE |
| W6-8 | 6.00 | 8º |
| W6-10 | 6.00 | 10º |
| W6-12 | 6.00 | 12º |
| W6-14 | 6.00 | 14º |
| W6-16 | 6.00 | 16º |
| DESCRIPTION | MAJOR DIAMETER | INCLUDED ANGLE |
| W9-8 | 9.00 | 8º |
| W9-10 | 9.00 | 10º |
| W9-12 | 9.00 | 12º |
| W9-14 | 9.00 | 14º |
| W9-16 | 9.00 | 16º |
Other angles available on request
